Mobile Command Center
Our fully customizable 8.5x20, Office and Command Trailer is built for versatility and comfort.
Featuring 5,200 lb tandem axles, a robust 6” I-beam main frame, and a 66” triple tube tongue, this trailer ensures durability and efficiency.

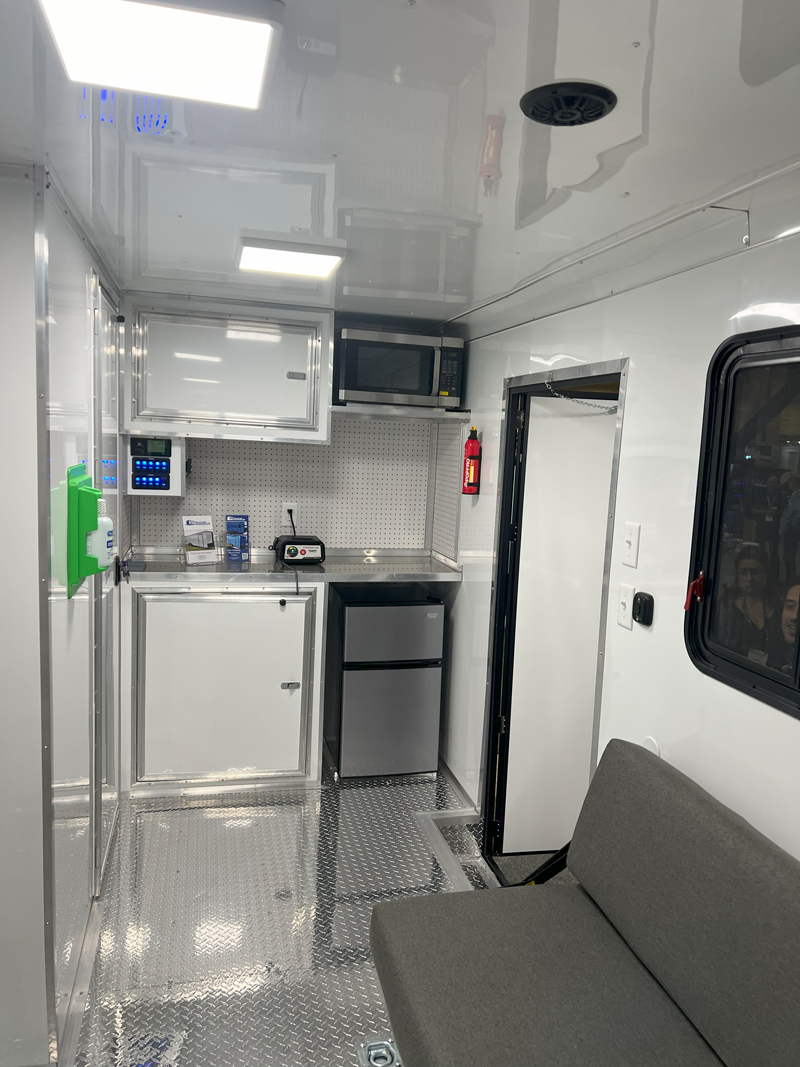

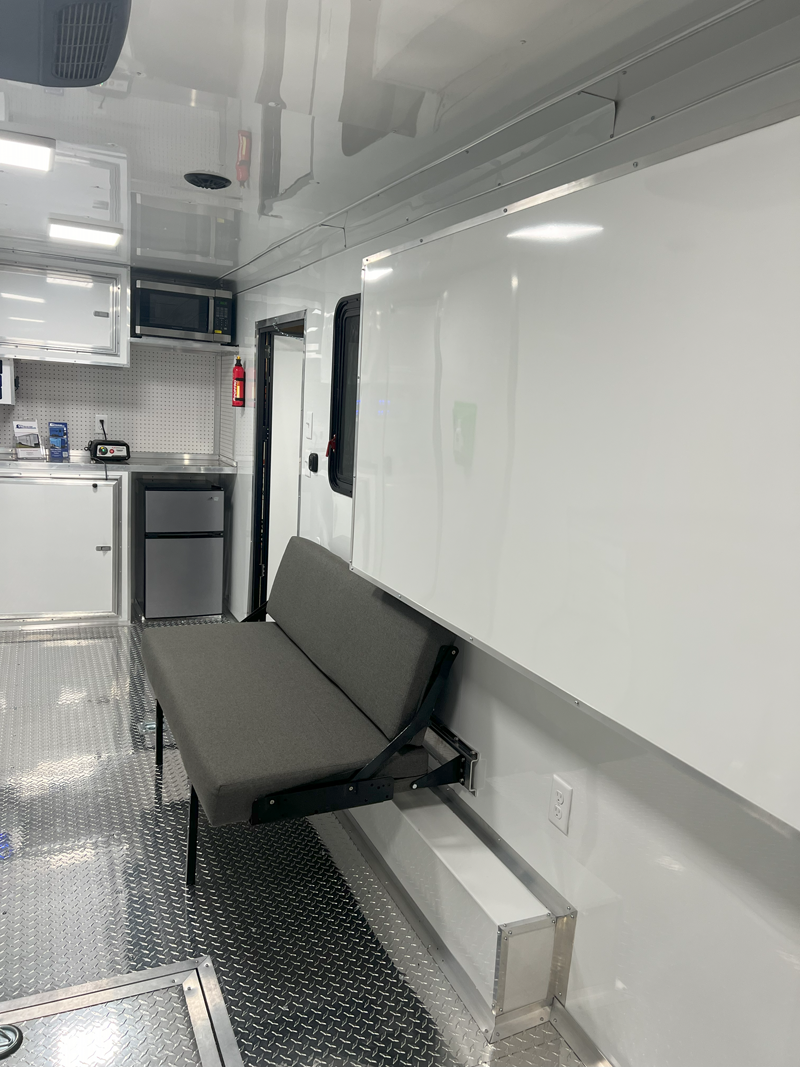

Inside, enjoy a 13,500 BTU A/C with heat strip, 48” electric baseboard heater, mini fridge, microwave, and a mounted futon/sofabed. The white metal walls double as a dry erase board, and LED lighting is installed throughout.

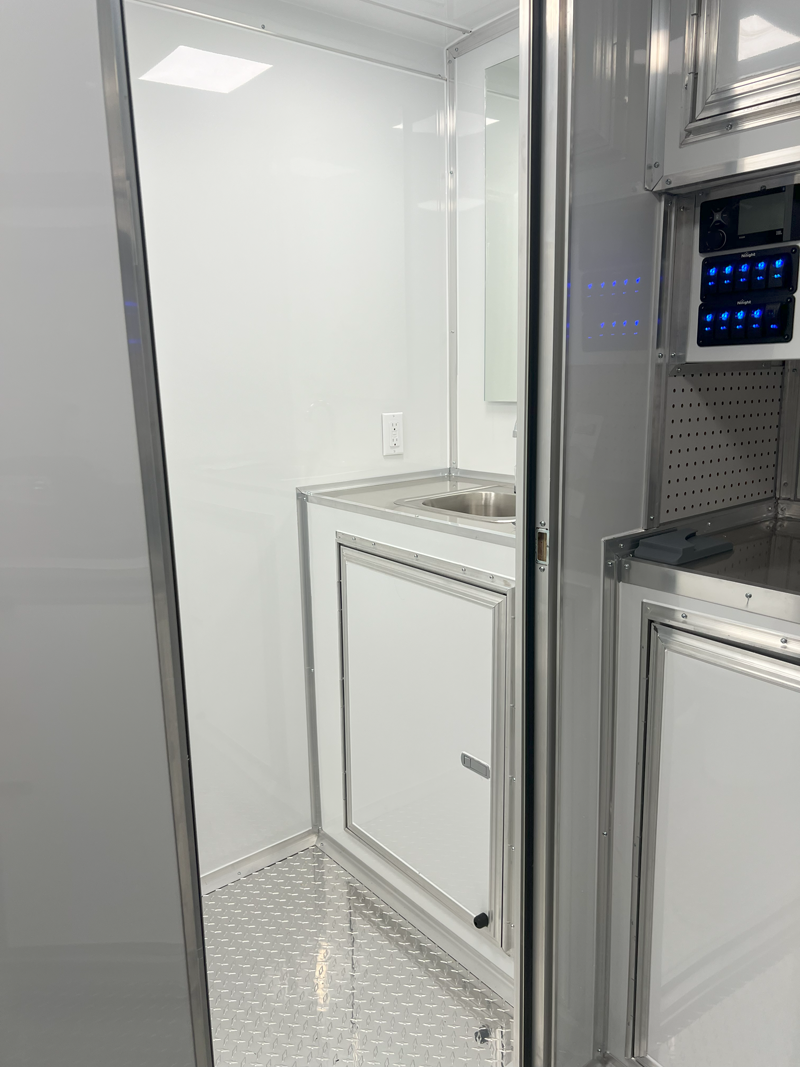

Key features include a complete half bath, hidden spare tire compartment, exterior encased monitor, and Starlink internet. Safety is prioritized with fire extinguisher, first aid kit, and eye wash station.
Customize your trailer with a range of options to fit your needs, including enhanced lighting, additional storage, and more.


Available Add-Ons
- 15k BTU AC/Heater with Thermostat
- Onan Generators with Thermostat & Fuel Gauge
- Solar Panels (Green Initiative)
- Mast Installations
- Race Packages
- Security Cameras
- Concession Doors
- Bunk Rooms
- Laundry Rooms
- Full Kitchens
- Conference Rooms
- Decontamination Rooms
- Security/Munition Lockers
 |
|
Mobile Command Center
|
|
Trailer
- Metal exterior available in a variety of colors
- V-Nose with vertical ATP trim
- 24” Stone Guard on front
- 36” RV-style side and rear door with flush lock
- Non-powered roof vent or sidewall

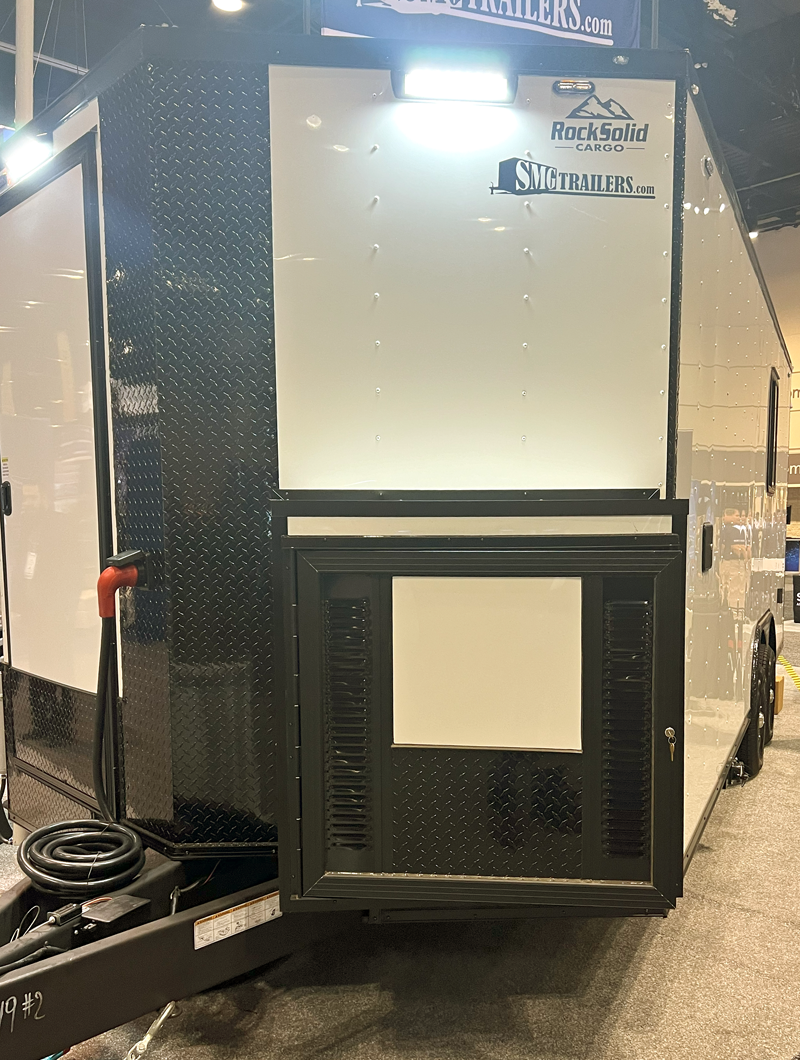

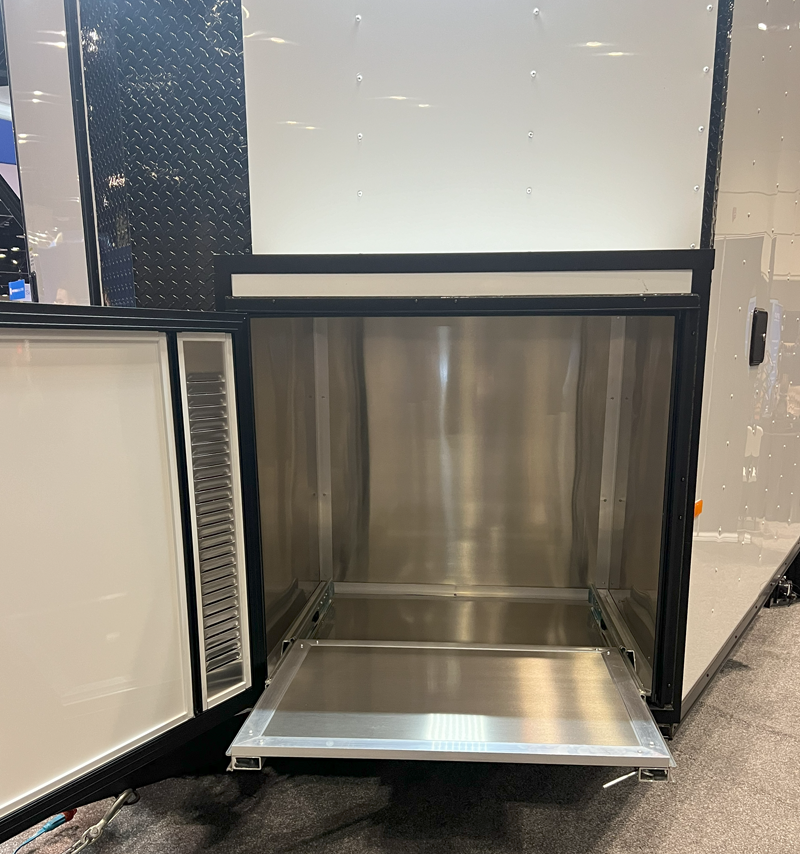

- Exterior generator storage cabinet (on V-nose)
- NEMA L5-30R generator input (generator optional)
Exterior & Mechanical
- 15” Radial Tires / Silver Mod Wheels
- Tandem 3500 lbs spring axles with 4” drop and EZ lube hubs

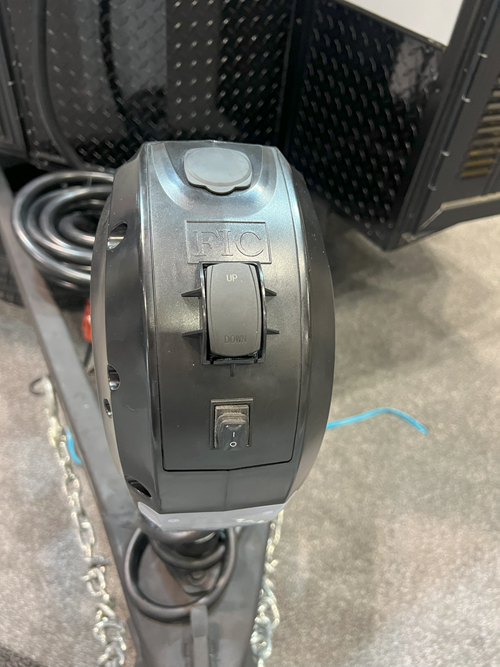

- 2000 lbs triple steel tongue jack
- Std. trailer 7-way round electrical plug
- 2 5/16” coupler
- LED Strip tail lights
- Two flush mount DOT strobes & area lights - all four sides
Structural
- 3/4” plywood floor/painted underneath
- Premium 3/8” plywood sidewalls
- 1”x1½” steel tube in walls and ceiling
- 6” I-Beam main frame
- Wall members: 16” O.C.
- Floor cross-members: 16” O.C.
- Roof members: 24” O.C.
- Galvalume steel roof
Interior
- 84” (7’) interior height
- 34”H x 24”D work counters
- Two 15”x18” Fiber entry doors
- Four cabinets and four storage drawers
- AC/Heat: 13,500 BTU
|
Electrical
- 50A Breaker panel (8 position)
- Seven bright LED strip light with switch
- 12V Dome light with switch
- Battery backup for lighting
- 110VAC GFCI outlets
- 3x Interior / 3x Exterior
Options
- Add your logo onto trailer
- Pintle/Bulldog hitch
- WEN Super Quiet 4500-Watt Electric Start Dual Fuel RV-Ready Portable Inverter
- Upgrade axle:
- 5200 lbs axle (15” tires)
- 7000 lbs axle (16” tires)
- Add 18x48” exterior fold-down work table
- Raise trailer +4” for additional clearance
- Add flood lights over doors
- Add floor hatch (handhold/manhole access)
- Extra insulation in walls
- Upgrade HVAC
- 15,000 BTU
- 2x 15,000 BTU split
- Video surveillance
- Extra interior LED lighting
- Starlink Internet
Certification
|
|
|
